433MHz RADIO MODEMS

ADN-16S
433MHz RS232 / RS485 RADIO MODEM

• Max. speed: 19,200 bps, transparent mode
• Water proof case,  ¼ internal antenna
• Easy installation
•  Up to 1km Transmission range in open environment
• 10mW - ISM(Industrial Scientific Medical) band that doen't require any licence.
• 16 channel, synthesized at 100kHz(FSK)
• Power supply 10 - 30Vdc

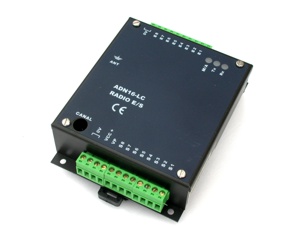

ADN16-LC
433MHz 8 Digital Input / 8 Digital Output Radio Module

• 8 opto-coupler input + 8 NPN transistor output
• Full duplex, cyclic or on event working mode
• Copying inputs/outputs in Mirroring mode
• Compatible with ADN16-S (serial version) radio module
• Compatible with Modbus / Jbus protocole
• Secured transmission (CRC16)
• Metal case for mounting DIN ray system
• Screw terminal
• ¼ wave antenna with 50cm. cable
• Power supply: 10 - 28Vdc

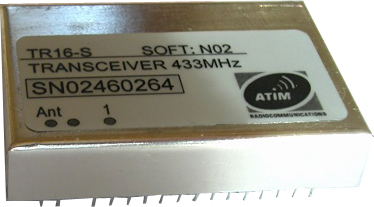

TR16S
Tiny Radio Transmitter

• 433MHz, 16 channel, 10mW band that doesn't require licencing
• TTL serial interface (0-5V)
• Transmission speed: 1200 - 19200 bps
• Sensitivity: -90dBm
• Upgradebla firmware (FLASH memory)
• Compatible with Hayes commands
• Internal E2prom (saving the configuration)
• Internal multiple interfaces: digital, analog, serial, I2C, 8-bit bus (30-pin )
• Optional different specifications for enlarging
• Power supply: 5Vdc (consumption<40mA)
• Low cost, useful for large series


NEW LONWORKS VERSİON IS AVAILABLE
