WIRELESS ETHERNET (Wi - Fi)
Industrial Wireless Ethernet (Wi - Fi) Products
Our vocation is to adapt our products to the requirements of the industrial market : harsh environments, embedded systems, etc.
All our current products are Wi-Fi certified, i.e. they can interoperate with other competitive Wi-Fi products.
Some models have the benefit of 2 connectors for external antennas (operating in diversity mode for reducing the attenuation by reflection phenomenons) which is appropriate in closed metallic environment (factory halls).
The appropriate antenna choice can improve considerably the Wi-Fi range.
2454G - 802.11 b/g (1-54Mbps) Industrial Wi-Fi Adapter |
 |
- IEEE 802.11b/g 2.4GHz 1,5.5,11,22 and 54Mbps

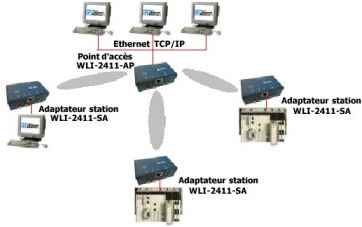

- Multi-feature interface : Acces point (AP), Station Adapter(SA), WDS, Ad-Hoc
- Compact aluminium DIN rail housing
- WEP40 / 128 bits encryption and WPA mode
- MAC address filtering
- Access point invisibility mode
- Configuration by embedded web page
- External 10-30Vdc power supply (~200mA under 12V)
External antenna connector (1 SMA-RP external) |
|
10-IP or IPD - 802.11b (1-11Mbps) Industrial Access Point
The XI1510-IP Access Point is dedicated for applications requiring robustness and reliability in disturbed industrial environment. It is 802.11b standard complyance (Wi-Fi). Its RJ45 connector (10/100 Mbps)enables a wireless Ethernet connectivity between PCs and PLCs. It operates on the 2.4 GHz frequency band in DSSS.
Its power supply is done directly through the Ethernet cable in PoE (Power over Ethernet) technology avoiding thus extra cabling on the XI1510-IP. Its waterproof case allows to fix it in outdoor and the closiest as possible to the antenna for limiting cable attenuation loss.
The XI1510-IPD is similar to the XI1510-IP but equiped with 2 N-connectors for operating in diversity mode with 2 antennas (To suppress the reflection phenomenon).
Its installation is very fast : configuration and management by Web navigator or a Windows based utility.
Regarding security, the 40-bit and 128-bit WEP encryption can be selected as well as the MAC address filtering. It can operate under different modes : point-to-point bridge, multi-point, roaming, repeater, etc. Its 11 Mbps baudrate can be lowered to 5.5, 2 or 1 Mbps for increasing its sensibility.
A RSSI test function which can be launched locally or remotely, is available in standard for channel analysis.
This product had been tested successfully with industrial Ethernet protocols (Schneider, Siemens, Allen Bradley, etc...). |
 |
5108 - 802.11a Industrial WLAN Interface
The wireless Ethernet WLI-5108 interface is designed for applications requiring robustness and reliability in disturbed industrial environment. It supports 802.11a in 5.7GHz and 802.11b/g in 2.4GHz with a throughput of 54Mbps and even 108Mbps in Turbo A or Super G mode. Operating in 5.7GHz is ideal with less radio interference, besides the 802.11h standard is supported with DFS (Dynamic Frequency Selection) and TPC (Transmit Power Control) features. The European legislation has evoluated allowing 1W maximum for EIRP which offers longer transmission range. The WLI-5108 is well securized with WPA2 and an 128-bit AES encryption in proprietary bridge mode. It can also detect hackers and inform you by email. The configuration can be done easily with any web browser. The PoE adapter enables the power supply of the interface through the Ethernet cable.
- IEEE 802.11a/b/g (1-108Mbps)
- Industrial wireless ethernet interface (-E)
- RS232 version (-S)
- Self-learning mesh network feature
- Robust IP66 metal housing
- Data securization by WPA2 / AES-CCMP / 802.11i encryption + MAC address filtering.
- Power Over Ethernet (PoE)
- Configuration by embedded web pages
- Compatible with most WiFi products
- Designed for industrial environment
- NF connector for external antenna
|
 |
PC-CARD (PCMCIA type II)
For PC notebook, removable antennas : 2 MMCX connectors (diversity feature).
XI325H: 100mW High-power 802.11b version
XI305: 802.11b with fixed antenna version
|
 |
 |
|
COMPACT FLASH CARDS (CF)
For connecting your PDA on WiFi. For CompactFlash V1.4 CF+ Type II slot. Compatible with Windows CE2.12 / 3.0 / Win95 OSR2/ 98 / ME / 2000.
XI800: CF card (Type II) with diversity antenna
XI815: CF card (Type I) with diversity antenna
XI825M: CF Prism 2.5 (802.11b) card |
|
MINI-PCI CARD
For connecting your PDA on WiFi. For CompactFlash V1.4 CF+ Type II slot. Compatible with Windows CE2.12 / 3.0 / Win95 OSR2/ 98 / ME / 2000.
XI800: CF card (Type II) with diversity antenna
XI815: CF card (Type I) with diversity antenna
XI825M: CF Prism 2.5 (802.11b) card |
|
802.11a Atheros AR5112 + AR5213
High power(21dBm), high sensitivity (-73dBm) |
|
802.11b/g Atheros AR2414
Compatible with Win CE (contact us for Windows CE driver) |
|
